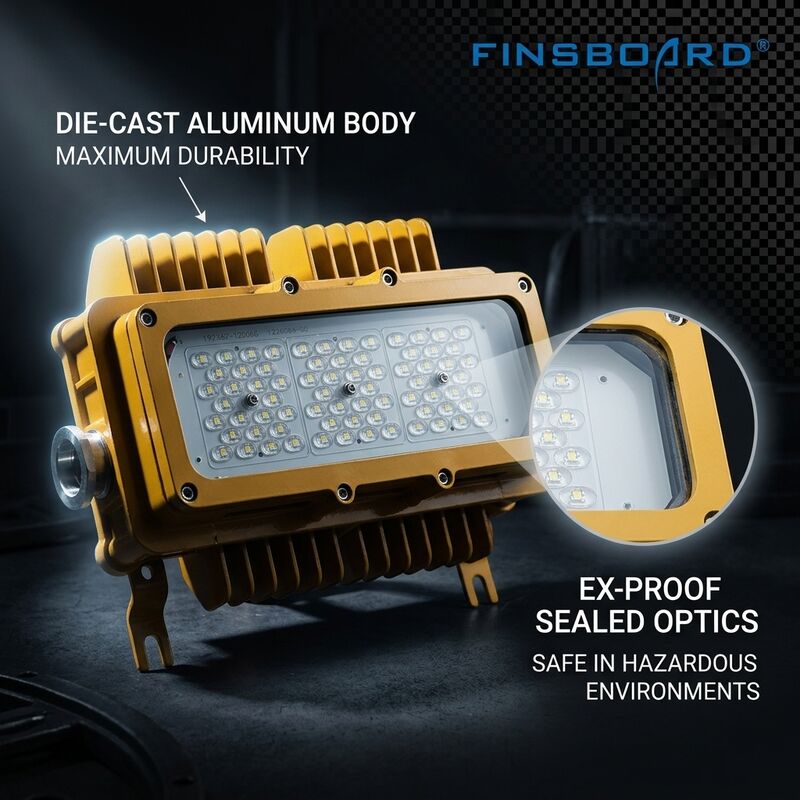

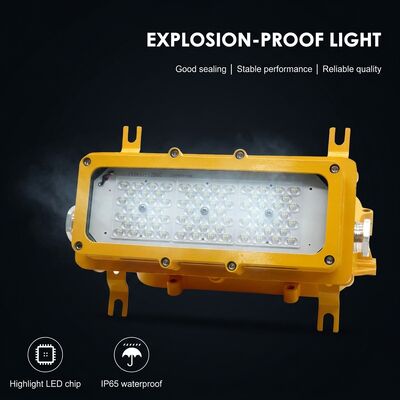

ATEX Ex db mb IIb T6 Certified 600W LED Explosion Proof Light LUMILEDS LM-80 100-120LM/W IP65 Hazardous Location Fixture
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | RFEPL |
| Certificação: | CE, ROHS, CCC, ATEX |
| Número do modelo: | RFEPL8280-600W |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | USD 399-799/Piece |
| Detalhes da embalagem: | Caixa de exportação K = K com proteção interna de espuma EPE |
| Tempo de entrega: | 15-25 dias úteis |
| Termos de pagamento: | T/T, L/C, União Ocidental |
| Habilidade da fonte: | 5000 peças por mês |
|
Informação detalhada |
|||
| Poder: | 600W | Eficácia luminosa: | 100-120 lm/w |
|---|---|---|---|
| Marca de chips LED: | Luminilhas | Certificação LED: | LM-80 |
| Tensão de entrada: | AC100-277V | Fator de potência: | ≥0,95 |
| Certificações: | Marcação, ROHS, CCC, ATEX | Padrão à prova de explosão: | Ex db mb IIb T6 |
| Proteção de entrada: | IP65 | Proteção de tempo: | WF2 |
| Proteção contra surtos: | 6KV | Índice de reprodução de cores: | IRC ≥80 |
| Material de habitação: | Alumínio + vidro temperado | Opções do ângulo de feixe: | 30°/60°/90° |
| Especificação de cabo: | 1,0 mm² | Acabamento de superfície: | Pintura Amarelo / Cinza |
| Duração de vida: | 50.000 horas | Temperatura operacional: | -40°C a +60°C |
| Umidade operacional: | 10% a 90% RH | ||
| Destacar: | ATEX certified LED explosion proof light,600W hazardous location LED fixture,LUMILEDS LM-80 explosion proof lighting |
||
Descrição de produto
The RFEPL8280-600W is a high-output LED explosion proof lighting solution engineered specifically for the most demanding hazardous area environments. This 600-watt industrial luminaire carries full ATEX certification to the Ex db mb IIb T6 standard, employing a sophisticated dual-protection architecture that combines flameproof enclosure (Ex d) design with encapsulation (Ex m) protection for all internal electronic components.
The result is a luminaire that safely contains any internal explosion within its robust housing while preventing the propagation of flame to the surrounding explosive atmosphere. Designed for Zone 1 and Zone 2 classified areas where flammable gases of Group IIB may be present during normal operations, the RFEPL8280-600W delivers powerful, reliable illumination that meets the stringent safety requirements of IEC 60079 series standards.
Its T6 temperature classification, the most stringent available, ensures the external surface temperature never exceeds 85°C, making it suitable for environments containing substances with low ignition temperatures including carbon disulfide and ethyl nitrate.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-600W |
| Rated Power | 600W |
| Total Luminous Flux | Up to 72,000 LM |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Temperature Classification | T6 (Max Surface Temp ≤85°C) |
| Applicable Zones | Zone 1, Zone 2 (Gas Group IIB) |
| Ingress Protection | IP65 |
| Weather Protection | WF2 |
| Surge Protection | 6KV |
| Color Rendering Index | CRI ≥80 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Beam Angle Options | 30° / 60° / 90° |
| Surface Finish | Electrostatic Powder Coating (Yellow / Grey) |
| Cable Specification | 1.0mm² (Fire-Resistant) |
| Rated Lifespan | 50,000 Hours (L90) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
The RFEPL8280-600W ATEX certified explosion proof luminaire is the definitive choice for large-scale hazardous area illumination projects where both safety compliance and high light output are non-negotiable requirements.
- Offshore oil and gas platforms rely on this fixture for helideck perimeter lighting, process deck illumination, and FPSO topside area lighting where corrosive salt spray and hydrocarbon vapors coexist
- Onshore refineries and petrochemical complexes deploy multiple units across distillation columns, cracking units, and tank farm access ways to maintain safe working visibility during night shifts and emergency operations
- LNG liquefaction trains and regasification terminals require the T6 temperature class for safe lighting around cryogenic hydrocarbon handling equipment
- Chemical storage warehouses, solvent recovery plants, and hydrogen production facilities benefit from the comprehensive ATEX certification package that eliminates any doubt about compliance status during safety audits and insurance inspections
Packaging & Quality Assurance
Every RFEPL8280-600W undergoes a rigorous multi-stage quality control protocol before shipment. Individual components are traceable to raw material batches, and each assembled luminaire passes high-voltage dielectric testing, full photometric calibration, and a simulated operational burn-in period.
Final inspection includes dimensional verification of all flamepath gaps and mating surfaces to ensure ongoing Ex d compliance throughout the product service life. Products are packed in heavy-duty export cartons with custom-molded EPE foam inserts that protect the tempered glass lens and aluminum housing from transit damage.
Complete quality documentation, ATEX certificates, and a 3-year manufacturer warranty accompany every order. Our dedicated hazardous area lighting support team provides pre-sales technical consultation, installation guidance, and responsive after-sales service to ensure your project success.
