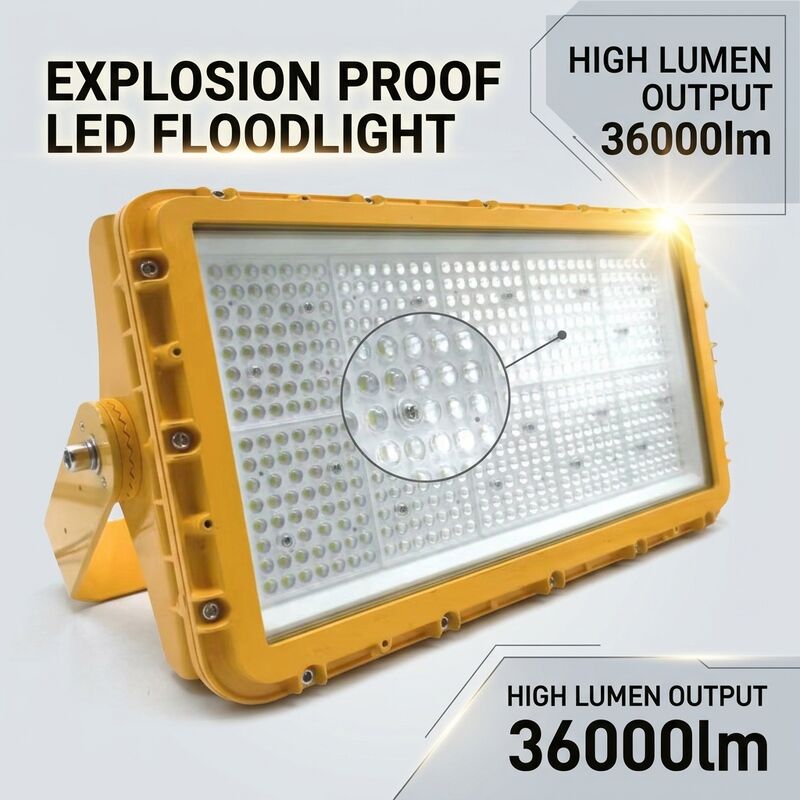

600W Explosion Proof LED Flood Light IECEx Emergency Battery Backup 72000lm IP67 Copper-Free Aluminum Marine Lighting
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | Fins board, BOCAQ |
| Certificação: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Número do modelo: | EPFL-600W-EMG |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10 peças |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de embalagem + bolha ou sob medida |
| Tempo de entrega: | 10 a 15 dias ou confirmação |
| Termos de pagamento: | T/T, União Ocidental |
| Habilidade da fonte: | 5000 unidades/mês |
|
Informação detalhada |
|||
| Poder: | 600W | Fluxo luminoso: | 72000lm |
|---|---|---|---|
| Eficácia: | 120lm/w | Temperatura de cor: | 5000K (Branco Frio) |
| Ângulo de feixe: | 120° | Tensão de entrada: | CA 100-277 V 50/60 Hz |
| Chip conduzido: | Philips Lumileds 3030 | Classificação IP: | IP67 |
| Material de habitação: | Liga de alumínio sem cobre com revestimento epóxi de grau marítimo | Material da lente: | Vidro Temperado 5mm |
| Temperatura operacional: | -40°C a +55°C | Certificação: | IECEx Ex d IIC T6 Gb |
| Vida útil: | ≥50.000 horas L70 | Garantia: | 5 anos |
| Destacar: | Emergency Explosion Proof Light,IECEx Battery Backup Floodlight,90min Autonomous Hazardous Light |
||
Descrição de produto
600W Explosion Proof LED Flood Light - IECEx Emergency Battery Backup
Product Overview
The EPFL-600W-EMG is a 600W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 72000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- IECEx Ex d Certified - IECEx Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Copper-Free Aluminum Alloy Housing - Copper-Free Aluminum Alloy with Marine-Grade Epoxy Coating with corrosion-resistant coating for long-term durability
- IP67 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Philip.s Lumileds 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Integrated Battery Backup - Built-in LiFePO4 battery module provides >90 minutes of autonomous operation at full brightness upon mains power loss
- Automatic Failover - Seamless <0.2 second switchover with self-test functionality compliant with IEC 60598-2-22 emergency lighting standards
Applications
Ideal for hazardous classified areas including:
- Emergency egress lighting, muster stations, lifeboat embarkation areas, and safety-critical zones
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-EMG |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Philip.s Lumileds 3030 |
| IP Rating | IP67 |
| Housing Material | Copper-Free Aluminum Alloy with Marine-Grade Epoxy Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +55°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
