300W Explosion Proof LED Flood Light IECEx Arctic Grade -60°C Extreme Cold 36000lm IP66 Aluminum Lighting
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | Fins board, BOCAQ |
| Certificação: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Número do modelo: | EPFL-300W-ARC |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10 peças |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de embalagem + bolha ou sob medida |
| Tempo de entrega: | 10 a 15 dias ou confirmação |
| Termos de pagamento: | T/T, União Ocidental |
| Habilidade da fonte: | 5000 unidades/mês |
|
Informação detalhada |
|||
| Certificação: | IECEx Ex d IIC T6 Gb | Vida útil: | ≥50.000 horas L70 |
|---|---|---|---|
| Garantia: | 5 anos | Poder: | 300 W |
| Fluxo luminoso: | 36000lm | Eficácia: | 120lm/w |
| Temperatura de cor: | 4000K (branco neutro) | Ângulo de feixe: | 90° |
| Tensão de entrada: | CA 100-277 V 50/60 Hz | Chip conduzido: | Philips Lumileds 3030 |
| Classificação IP: | IP66 | Material de habitação: | Liga de alumínio sem cobre com revestimento de grau ártico |
| Material da lente: | Vidro Temperado 5mm | Temperatura operacional: | -60°C a +40°C |
| Destacar: | Arctic Explosion Proof Light,IECEx -60°C LED Floodlight,Extreme Cold Hazardous Lighting |
||
Descrição de produto

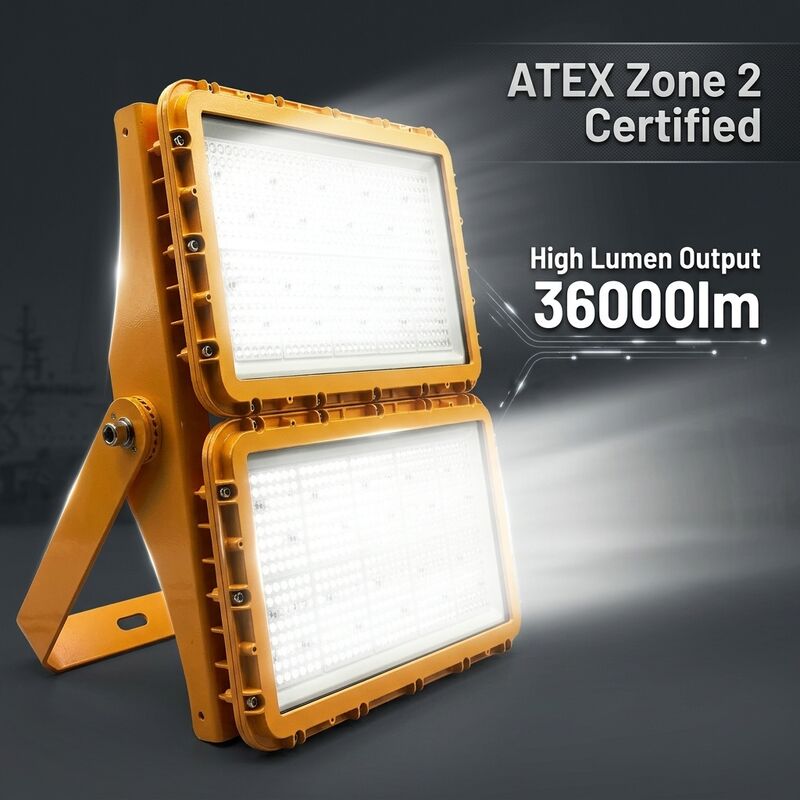

300W Explosion Proof LED Flood Light IECEx Arctic Grade -60°C Extreme Cold 36000lm IP66 Aluminum Lighting
300W Explosion Proof LED Flood Light - IECEx Ex d Hazardous Area Lighting
The EPFL-300W-ARC is a 300W explosion proof LED flood light engineered for demanding industrial environments. Delivering 36000lm luminous flux with 120lm/W efficacy, this focused 90° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 300W High Power Output - 36000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- IECEx Ex d Certified - IECEx Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Copper-Free Aluminum Alloy Housing - Copper-Free Aluminum Alloy with Arctic-Grade Coating with corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Philip.s Lumileds 3030 LEDs - Premium LED chips delivering stable 4000K (Neutral White) light with excellent uniformity
- 90° Beam Angle - Focused beam for targeted work zone illumination for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Arctic-Grade Reliability - Certified cold-start at -60°C with integrated self-heating driver compartment, tested to IEC 60068-2-1 low temperature standards
- Low-Temperature Electronics - Militar.y-spec electronic components rated for extreme cold, with silicone-insulated internal wiring that remains flexible at sub-zero temperatures
Applications
Ideal for hazardous classified areas including:
- Arctic and subarctic oil and gas facilities, LNG liquefaction plants, cold storage
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-ARC |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 36000lm |
| Efficacy | 120lm/W |
| Color Temperature | 4000K (Neutral White) |
| Beam Angle | 90° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Philip.s Lumileds 3030 |
| IP Rating | IP66 |
| Housing Material | Copper-Free Aluminum Alloy with Arctic-Grade Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -60°C to +40°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
