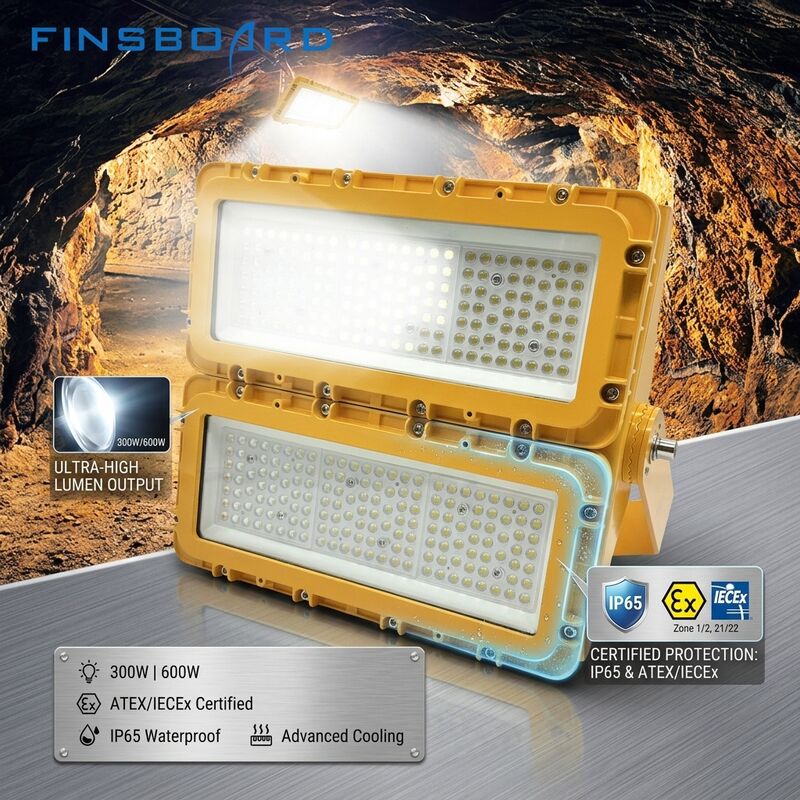

300W Explosion Proof LED Flood Light IECEx Portable Tripod Mount Temporary 36000lm IP67 Copper-Free Aluminum Alloy
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | Fins board, BOCAQ |
| Certificação: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Número do modelo: | EPFL-300W-PORT |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10 peças |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de embalagem + bolha ou sob medida |
| Tempo de entrega: | 10 a 15 dias ou confirmação |
| Termos de pagamento: | T/T, União Ocidental |
| Habilidade da fonte: | 5000 unidades/mês |
|
Informação detalhada |
|||
| Poder: | 300 W | Fluxo luminoso: | 36000lm |
|---|---|---|---|
| Eficácia: | 120lm/w | Temperatura de cor: | 5000K (Branco Frio) |
| Ângulo de feixe: | 90° | Tensão de entrada: | CA 100-277 V 50/60 Hz |
| Chip conduzido: | Bridgelux SMD 3030 | Classificação IP: | IP67 |
| Material de habitação: | Liga de alumínio sem cobre com revestimento epóxi | Material da lente: | Vidro Temperado 5mm |
| Temperatura operacional: | -40°C a +55°C | Certificação: | IECEx Ex d IIC T6 Gb |
| Vida útil: | ≥50.000 horas L70 | Garantia: | 5 anos |
| Destacar: | 300W explosion proof LED flood light,portable tripod mount explosion proof light,36000lm IP67 explosion proof lighting |
||
Descrição de produto
300W Explosion Proof LED Flood Light - IECEx Portable Tripod Mount
High-performance temporary lighting solution delivering 36000 lumens with IECEx certification for hazardous area applications. Features copper-free aluminum alloy construction and IP67 protection for extreme industrial environments.
Key Features
- 300W High Power Output - 36000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- IECEx Ex d Certified - IECEx Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Copper-Free Aluminum Alloy Housing - Copper-Free Aluminum Alloy with Epoxy Coating with corrosion-resistant coating for long-term durability
- IP67 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 90° Beam Angle - Focused beam for targeted work zone illumination for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Portable Tripod System - Quick-deploy adjustable tripod stand (1.5m-3m) with lockable wheels, deployable by a single operator in under 5 minutes
- Rapid Deployment - Tool-free assembly with quick-connect bracket system, ideal for plant turnaround and shutdown scenarios
Applications
- Temporary lighting for plant turnarounds, maintenance, and emergency response
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-PORT |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 36000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 90° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP67 |
| Housing Material | Copper-Free Aluminum Alloy with Epoxy Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +55°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
