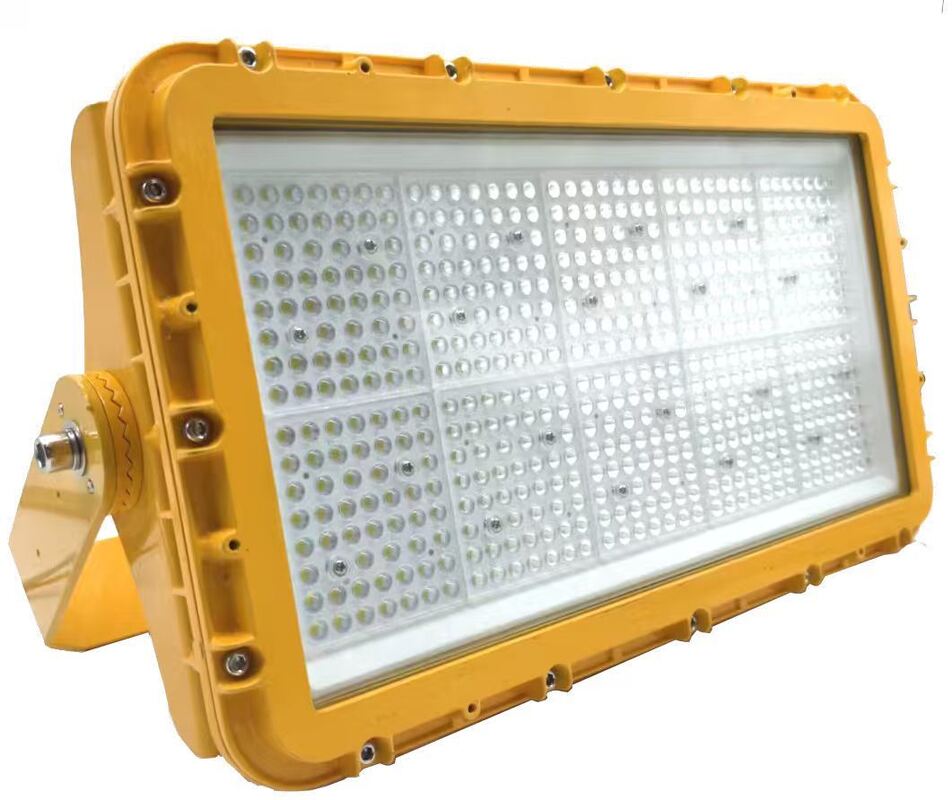

300W Explosion Proof LED Flood Light ATEX Zone 2 Hazardous Area IP65 Cost-Effective 36000lm IP65 Die-Cast Aluminum ADC12
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | Fins board, BOCAQ |
| Certificação: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Número do modelo: | EPFL-300W-Z2 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10 peças |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de embalagem + bolha ou sob medida |
| Tempo de entrega: | 10 a 15 dias ou confirmação |
| Termos de pagamento: | T/T, União Ocidental |
| Habilidade da fonte: | 5000 unidades/mês |
|
Informação detalhada |
|||
| Poder: | 300 W | Fluxo luminoso: | 36000lm |
|---|---|---|---|
| Eficácia: | 120lm/w | Temperatura de cor: | 5000K (Branco Frio) |
| Ângulo de feixe: | 120° | Tensão de entrada: | CA 100-277 V 50/60 Hz |
| Chip conduzido: | Bridgelux SMD 2835 | Classificação IP: | IP65 |
| Material de habitação: | Alumínio Fundido ADC12 | Material da lente: | Vidro Temperado 5mm |
| Temperatura operacional: | -30°C a +55°C | Certificação: | ATEX II 2G Ex d IIC T6 Gb |
| Vida útil: | ≥50.000 horas L70 | Garantia: | 5 anos |
| Destacar: | 300W explosion proof LED flood light,ATEX Zone 2 hazardous area lighting,IP65 die-cast aluminum flood light |
||
Descrição de produto
300W Explosion Proof LED Flood Light - ATEX Hazardous Area Lighting
Key Features
- 300W High Power Output - 36000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - Die-Cast Aluminum ADC12 with corrosion-resistant coating for long-term durability
- IP65 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 2835 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Cost-Optimized Design - Engineered for Zone 2 applications where gas presence is occasional, reducing total cost of ownership without compromising ATEX compliance
Applications
Ideal for hazardous classified areas including:
- Zone 2 secondary hazardous areas where cost efficiency is prioritized
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-Z2 |
| Power Consumption | 300W |
| Luminous Flux | 36000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 2835 |
| IP Rating | IP65 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -30°C to +55°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
